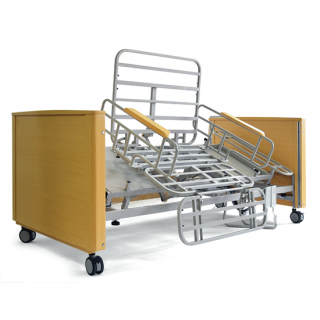

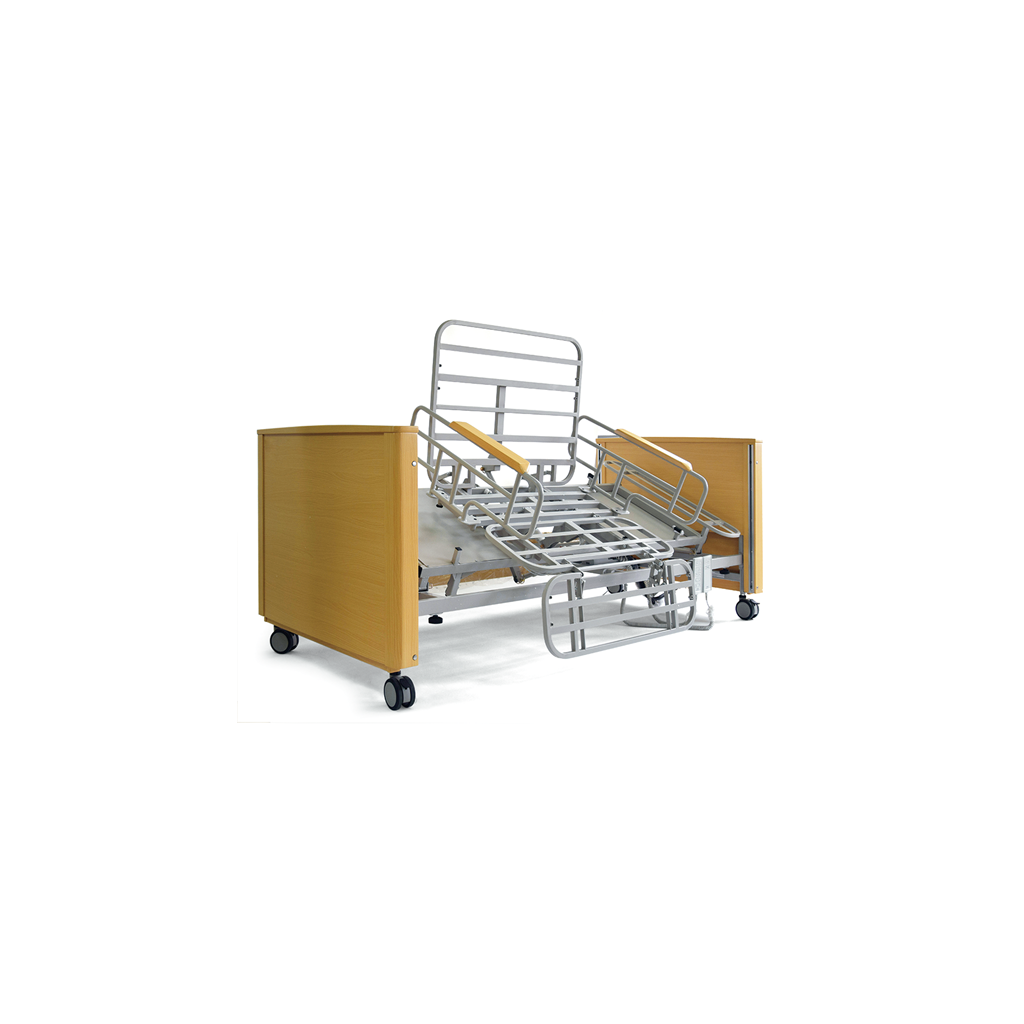

Electric Bed - Reclining Armchair with Swivel Armrest, Wooden Fronts and Wheels V-ROTATE 10-2-187 (10-2-187)

Multipurpose high standard electrical bed.

It combines all the functions of a hospital electric bed with those of the lift-up chair.

It operates with seven motors and two controllers.

The tilting of the backrest, the elevation of the lower limbs and the adjustment the angle of the knees, is conducted independently and autonomously with an electric controller.

The total height of the bed is electrically adjusted at selected positions.

Option for independent operation of the motor of the headboard or the footboard ("Trendelenburg/Anti-Trendelenburg Position").

Patient elevation trapeze with deltoid adjustable handle.

Bilateral rotation system of the sommier (on demand) in the seating position and for assisting the user in an upright position.

Easy transport on site, thanks to the four casters with brakes, which secure independently.

The assembly is easy without the use of tools.

Technical Characteristics

• Total bed length 225cm
• Total bed width 105cm
• Sommier length 215cm
• Sommier width 90cm
• Headboard height from sommier 41cm
• Sommier elevation range from the ground 48cm to 88cm
• Maximum backrest angle 70°
• Maximum lower extremities angle 35°
• Knee angle 25°
• Height of security sides from sommier 35cm
• Maximum Patient Weight 180kg

Code:10-2-192

"V-Rotate" bed mattress

Two-piece mattress, specially designed to be used in the "V-Rotate” bed. High density "PU foam" manufacture with cotton lining which is removable and washable.
